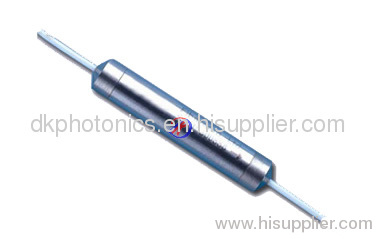

Enlarge Polarization Insensitive Single/Dual Stage 2X2 Optical Isolator

Polarization Insensitive Single/Dual Stage 2X2 Optical Isolator

Price: 20.0~100.0 USD
Payment Terms: T/T,L/C,
Place of Origin: Guangdong, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Means of Transport: Air,

Optical isolators can block back lection and backscattering in the reverse direction at any polarization sate. They have low polarization mode dispers

Features
Applications
  • High Isolation
  • Low Insertion Loss
  • High Return Loss
  • Low Polarization Sensitivity
  • Optical Path Epoxy Free
  • Fiber optic Amplifiers
  • CATV Fiber optic Links
  • Fiber optic Systems Testing
  • Fiber optic LAN Systems
  • Telecommunications
Performance Specifications
Type
Single Stage
Dual Stage
Operating Wavelength (nm)
1310,1550, 1585
Grade
Premium
A Grade
Premium
A Grade
Bandwidth (nm)
± 15
±30
Peak Isolation (Typ.) (dB)
>41
>40
>58
>53
Isolation (Min.) (dB)
>31
>30
>45
>44
Insertion Loss (Typ.) (dB)
<0.5
<0.6
<0.6
<0.8
Insertion Loss (Max.) (dB)
<0.65
<0.75
<0.8
<0.9
Cross Talk (Between the 2 isolators) (Min.) (dB)
>60
>50
>60
>55
Return Loss (In/Out)(Min.) (dB)
>60/55
>60/55
PDL (dB)
<0.08
<0.12
<0.1
<0.15
PMD (ps)
<0.2(<0.05ps available upon request)
<0.1(<0.05ps available upon request)
Operating Temperature (° C)
-20 to + 60
Storage Temperature (° C)
-40 to +85
Fiber Type
Corning SMF-28
Fiber Pigtail Length
1 Meter Each End
Package Dimension (mm)
Ø5.5x35 (38 for 900um Jacket)
Power Handling (mW)
300
** Does not include connector, splice and fiber-end fresher losses.
